August 11, 2026 Protecting light-emitting diode (LED) arrays and display circuits from moisture, dust, and thermal cycling is vital for maintaining optical performance and longevity. Fine-L-Kote LED2 Silicone (Product# 2125) is specifically formulated to provide a tough, highly flexible protective barrier that remains completely transparent, ensuring no interference with light wavelength or intensity.

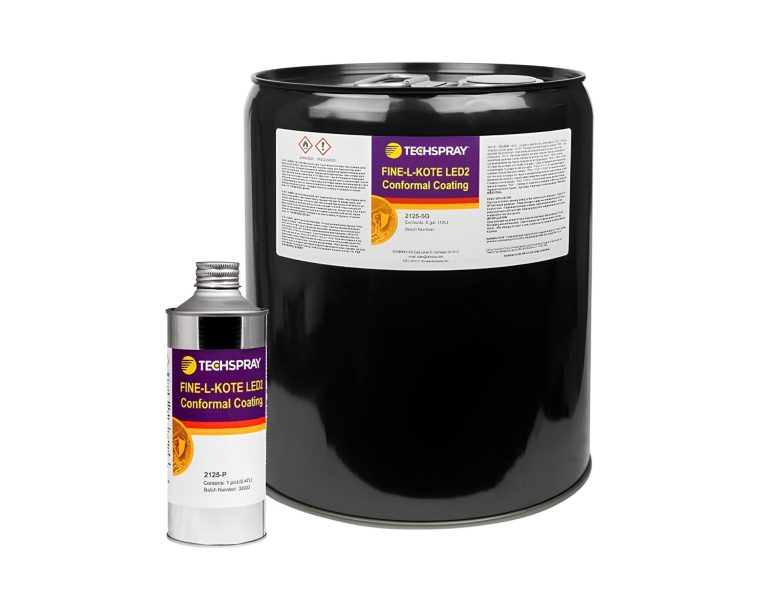

What is Fine-L-Kote LED2 Silicone?
Fine-L-Kote LED2 Silicone is a premium conformal coating developed by Techspray to meet the demanding requirements of modern display technology. Unlike standard coatings, this material offers exceptional flexibility, allowing it to withstand extreme temperature variations without stressing delicate circuit components. It provides a non-stick surface that repels dirt and soil, ensuring that LED displays remain clean and functional even in challenging environments.
Key Features and Benefits
- Optical Clarity: Transparent to visible wavelengths; it will not block or alter light intensity or color wavelength.
- Superior Environmental Protection: Resists moisture, salt, fungus, and corrosive vapors, making it ideal for marine and outdoor use.
- Extreme Flexibility: Excellent flexibility minimizes thermal stress on both flex and rigid circuitry.
- Standard Compliance: Meets IPC-CC-830B (Type SR), UL94 V-0 flammability ratings, and is RoHS compliant.
- Soil Repellency: Provides an outstanding non-stick surface that keeps surfaces clean for longer periods.
Applications in Electronics Manufacturing
The versatility and high-performance nature of Fine-L-Kote LED2 Silicone make it a preferred choice for various technical industries:
- LED Displays & Controls: Provides reliable insulation without interfering with light output.
- Automotive & Marine: Protects control modules and lighting from salt spray and climatic extremes.
- Instrumentation & Data Comms: Shields sensitive electronic components from adverse environmental conditions.
- Industrial Process Control: Ensures stable operation in environments with fluctuating heat and moisture.
Curing and Application Guide
1. Application Methods
This silicone coating can be applied to clean, dry surfaces to provide robust protection. 1 gallon of liquid provides coverage for approximately 723 sq. ft. at 1 mil of dry film thickness.
2. Curing Options
This product is highly versatile, offering multiple curing pathways to suit different production timelines:
- Ambient Cure: 72 hours at 77°F (25°C) and 30-60% RH.
- Accelerated Heat Cure: 8 hours at 170°F (77°C).
- 2-Step Heat Cure: 30 minutes at 90°F (32°C), followed by 100 minutes at 199°F (93°C).
Note: Full physical and electrical properties are achieved after 7 days.
Technical Specifications
| Property | Specification |
|---|---|
| Part Number | 2125 |
| Operating Temp Range | -76°F to 392°F (-60°C to 200°C) |
| Dielectric Strength | >720 volts/mil |
| Volume Resistivity | >1.4 x 10¹² ohm-cm |
| Hardness (Shore A) | 56 |
| Viscosity | 66-76 cps |
| Specific Gravity | 0.83 (@68°F) |
| VOC Content | 11.7% (Federal/Carb) | 108 g/L (SCAQMD) |
Conclusion & Support
For high-clarity protection of LED displays and flexible circuits, Fine-L-Kote LED2 Silicone 2125 is an industry-leading solution that balances optical transparency with rugged environmental resistance. For pricing, technical data sheets, or expert application advice, please visit Contact – LORIOT INDUSTRIAL to reach our team.
