August 11, 2026 Removing protective coatings during printed circuit board (PCB) rework and repair requires a powerful yet safe chemical solution. Fine-L-Kote Remover XT 2130 (Product# 2130) is engineered to dissolve and lift acrylics, silicones, urethanes, and single-component epoxies efficiently without relying on highly hazardous industrial solvents.
What is Fine-L-Kote Remover XT 2130?

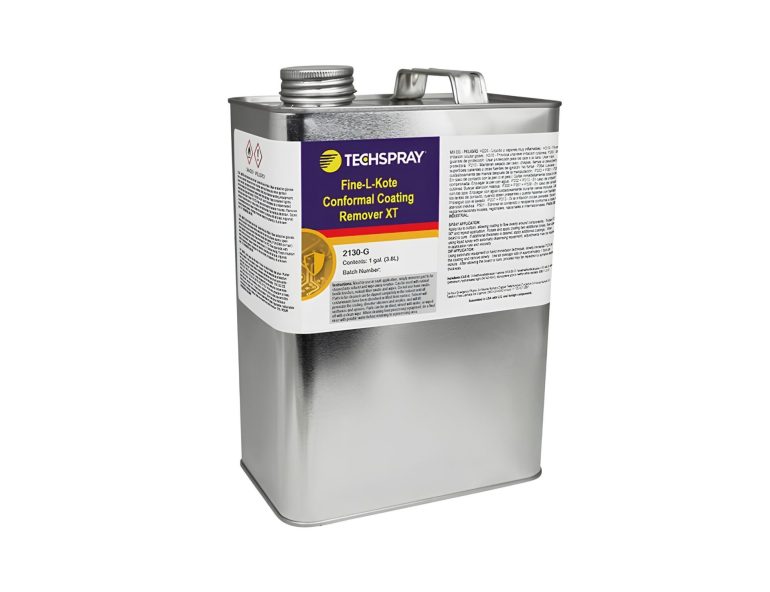

Fine-L-Kote Conformal Coating Remover XT is a heavy-duty coating removal solvent manufactured by Techspray. Specially formulated as a safer alternative to conventional strippers, it effectively permeates and breaks down protective coatings. Unlike legacy removers that contain highly toxic ingredients like MEK, methylene chloride, toluene, and xylene, this formulation provides exceptional stripping power while significantly reducing health and environmental hazards.
Key Features and Benefits of Fine-L-Kote Remover XT 2130
- Versatile Stripping Action: Easily dissolves acrylics (AR) and silicones (SR), while lifting urethanes (UR) and single-component epoxies.
- Safer Solvent Formulation: Formulated without MEK, xylene, toluene, or methylene chloride for improved operator safety.
- Non-Corrosive & Non-Ozone Depleting: Protects delicate electronic substrates and complies with environmental guidelines.
- Flexible Application Methods: Suitable for immersion soak applications, brushing, or wiping with natural fiber tools.
- RoHS Compliant: Meets international standards for restricted hazardous substances in electronic equipment.
Target Applications
The chemical versatility of Techspray coating removers makes them ideal for electronics manufacturing and rework environments, including:
- Removing acrylic, silicone, urethane, and single-component epoxy conformal coatings from populated PCBs.
- Depotting and spot-repairing sensitive electronic components.
- Soak-cleaning tools, fixtures, and components coated with cured resin residues.
Application Guide for Fine-L-Kote Remover XT 2130
1. Application & Removal Methods
This stripper can be applied using several flexible techniques depending on the assembly size and coating type:
- Soak Method: Completely submerge the target part in a bath of solvent until the coating dissolves or lifts away from the substrate.
- Manual Agitation: Apply using natural bristle brushes, natural fiber swabs, or clean lint-free wipes to scrub target areas. Note: Do not use foam swabs, as the solvent may degrade synthetic foam.
2. Post-Cleaning Process
Once the coating is completely dissolved or lifted, clean the substrate using one of the following methods:
- Rinse the assembly thoroughly with clean water.
- Wipe away loosened residue using a clean, dry lint-free cloth.
- Allow the part to air dry completely before re-coating or soldering.
Performance & Coating Removal Levels
Empirical testing demonstrates the effectiveness of this stripping formulation across various commercial coatings:
| Coating Tested | Coating Type | Removal Level |
|---|---|---|
| Techspray 2102 | Silicone (SR) | Complete |
| Techspray 2104 | Urethane (UR) | Complete (after 2nd application) |
| Techspray 2108 | Acrylic (AR) | Complete |
| HumiSeal 1A33 | Urethane (UR) | Complete |
| HumiSeal 1A20 | Urethane (UR) | Coating peeled off without dissolving |
| APPERTA XT 2019-03 | – | Complete |
| Unichem 9-53-376-A | – | Complete (after 2nd application) |
| Valspar 93-X035-A / 88X003-C1 | – | Complete |
| Gorilla Epoxy | Epoxy | Coating peeled off without dissolving |
Technical Specifications
| Property | Specification |
|---|---|
| Product Name / Part Number | Fine-L-Kote Conformal Coating Remover XT / 2130 |
| Physical State | Liquid (Clear) |
| Odor | Characteristic |
| Density (@ 25°C) | 1.09 g/ml |
| Flash Point (TAG CC) | 31°C / 88°F |
| Initial Boiling Point | > 90°C / > 194°F |
| KB Value | 36 |
| Evaporation Rate (n-butyl acetate = 1) | < 1 |
| Solubility in Water (by weight) | 81% |
| Percent Volatile | 100% |
| VOC Content | CARB 80% | SCAQMD 1088 g/L | EPA 0% |
| Environmental & Regulatory | RoHS Compliant, Non-corrosive, Non-ozone depleting |
Conclusion & Support
For safe, efficient, and reliable conformal coating stripping without exposure to harsh aromatic solvents, Fine-L-Kote Remover XT 2130 is the premier industry choice. To request pricing, technical datasheets, or product availability, please visit Contact – LORIOT INDUSTRIAL to get in touch with our technical sales team.
