October 12, 2026 Kyocera PCB Routers: High Precision Cutting Tools
Kyocera PCB Routers are manufactured with fine carbide grades to deliver exceptional precision in printed circuit board routing. Developed through rigorous material science research at Kyocera laboratories, these cutting tools provide reliable durability, minimal edge fracture, and superior surface finishing across varied PCB substrates.
Key Series of Kyocera PCB Routers
The product portfolio encompasses specialized geometries designed to address specific substrate requirements, routing stack heights, and edge quality standards:

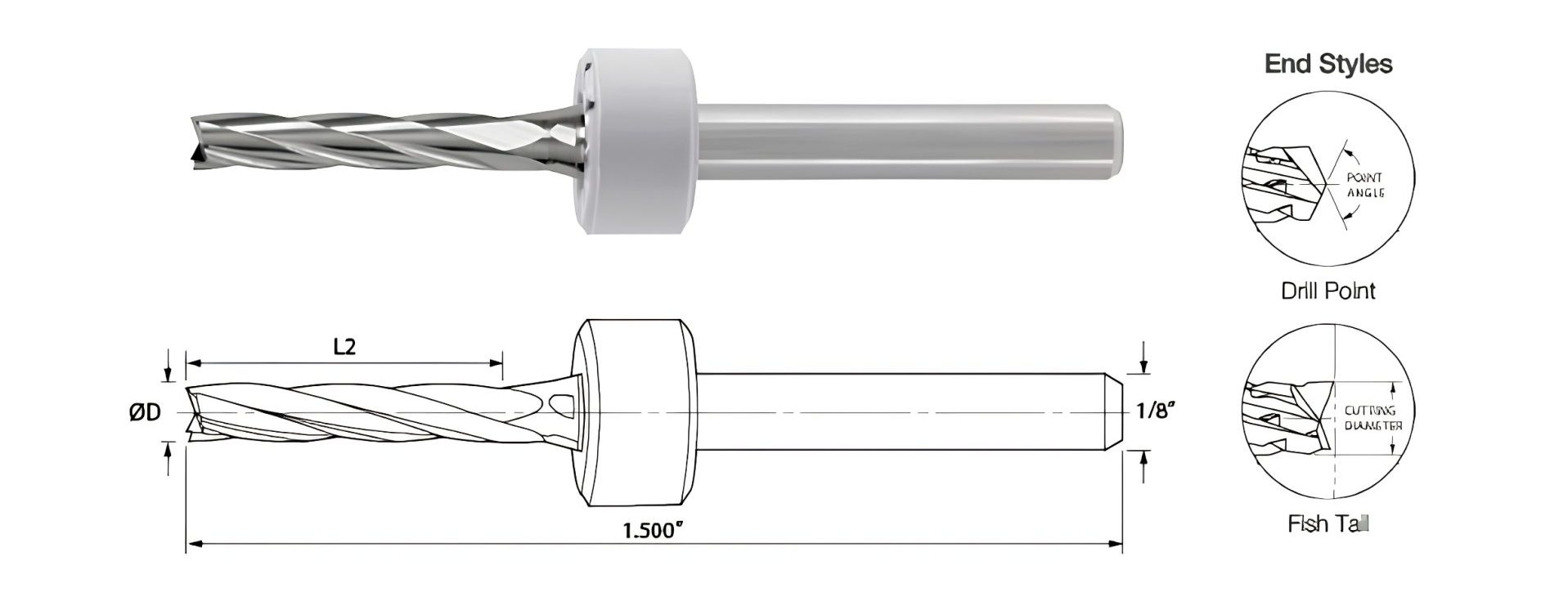

- Series 1300 – Gold Tab Premium Edge Routers: Multiple flute cutters designed specifically for routing printed circuit board gold tab connectors and plated solder features (Diameter range: 1.60mm – 2.40mm).

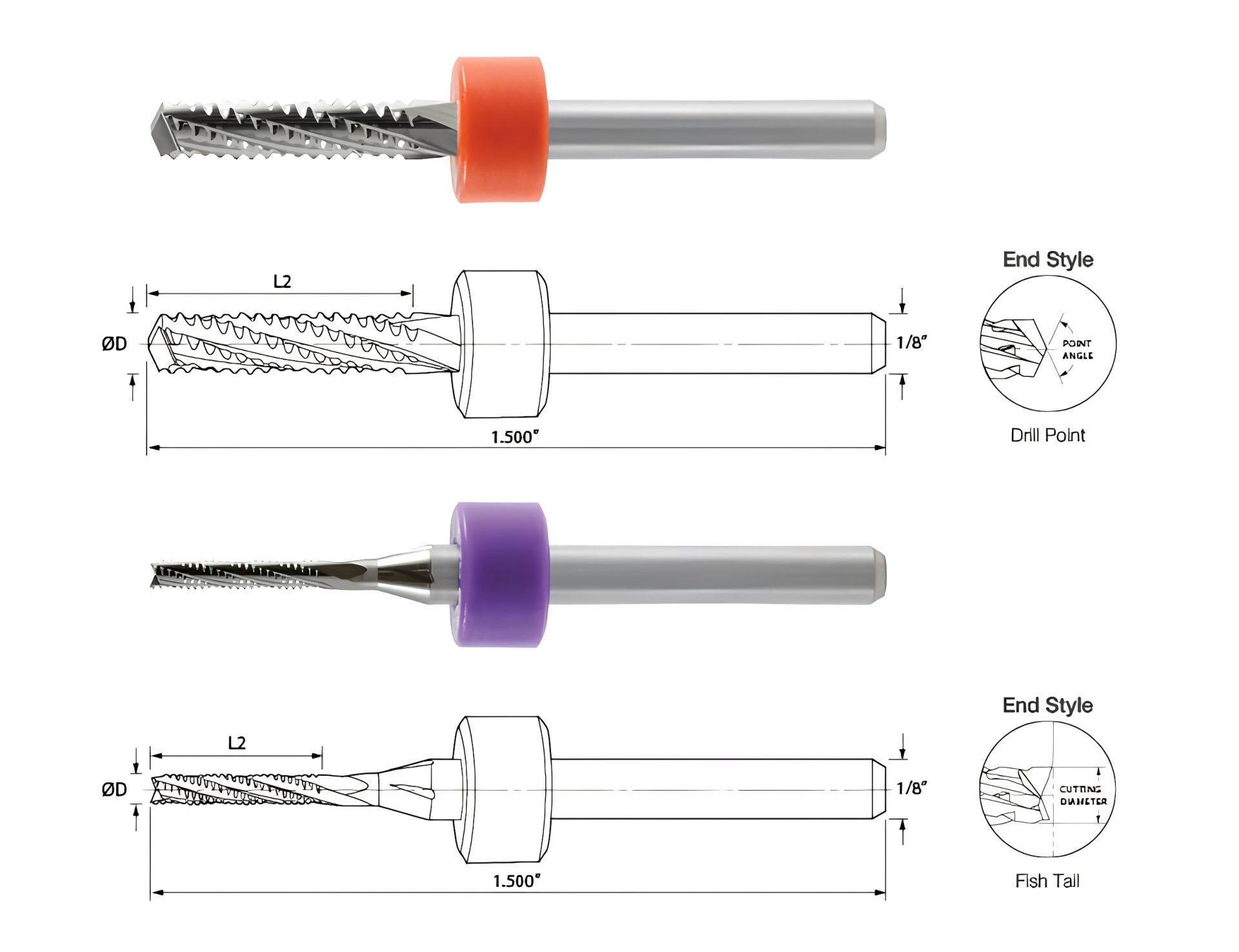

- Series 2300 – Chipbreaker Updraft Routers: Feature a chipbreaker style updraft design for superior edge finishing on both internal and external cuts. Available in Fish Tail and Drill Point end styles (Diameter range: 0.0500″ – 0.1250″ / 0.50mm – 3.00mm).

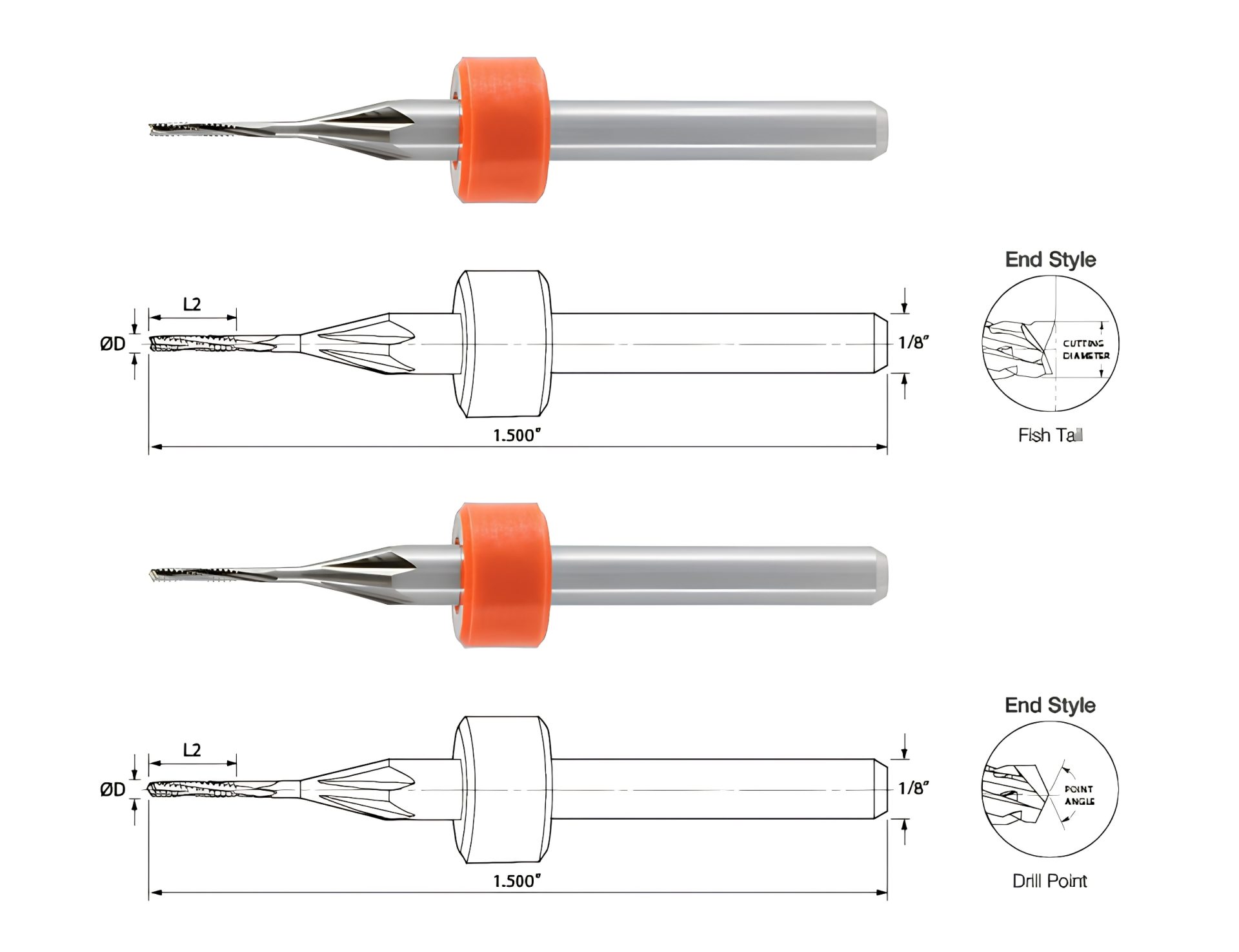

- Series 2350 – Low Fracture Updraft Routers: Engineered with a cutting force reduction geometry that minimizes routed edge fracturing, yielding cleaner structural edges (Diameter range: 0.80mm – 2.40mm).

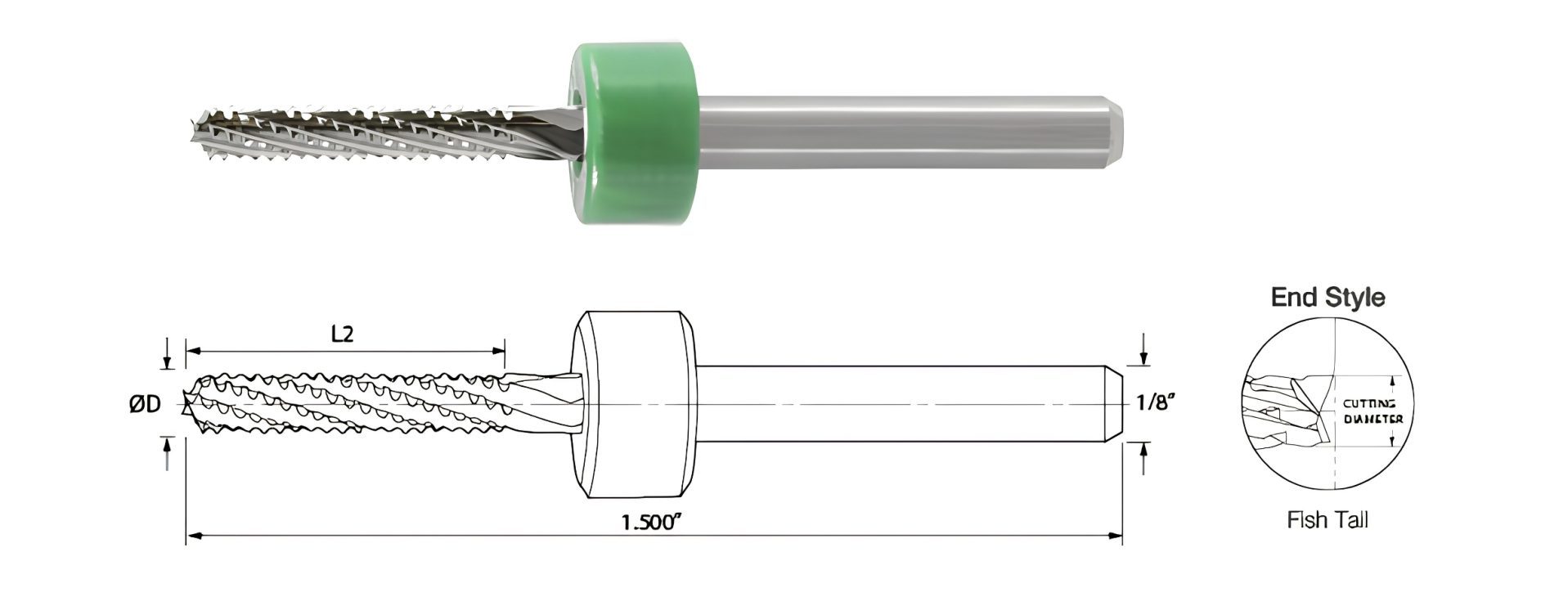

- Series 2390 – Flash Updraft Routers: Optimized for high stack routing operations, delivering clean external cut finishes under demanding manufacturing conditions (Diameter range: 0.0938″ – 0.1250″).

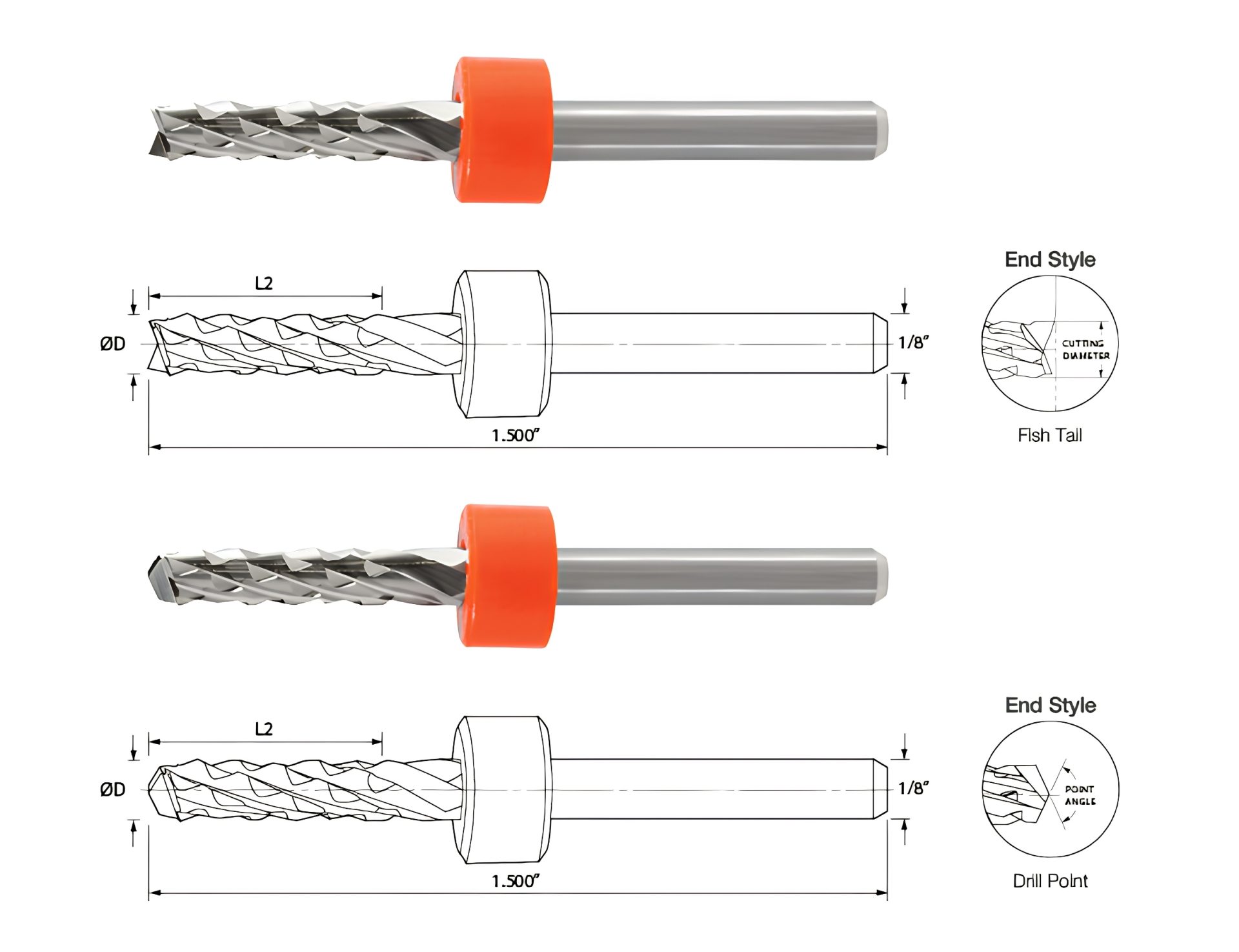

- Series 4100 – Cross Cut Updraft Routers: Incorporating a diamond cut style updraft geometry aimed at high-productivity routing (Diameter range: 0.0625″ – 0.1250″ / 0.50mm – 2.60mm).
Technical Advantages of Kyocera PCB Routers
Standard items feature rings set at 0.800 inches. For ringless part numbers, users can replace the series dot designation with a hyphen (XXX-XXXX.XXXX to XXX-XXXX-XXXX). Additional diameters, custom ring colors, and specific speed and feed recommendations accommodate diverse milling machinery setups.
Technical Specifications
| Series | Product Description | End Style / Shape | Flutes | Cutting Diameter Range |
|---|---|---|---|---|
| 1300 | Gold Tab Premium Edge Router | Standard Flute | 2 | 1.60mm – 2.40mm |
| 2300 | Chipbreaker Updraft Router | Fish Tail / Drill Point | 2 | 0.0500″ – 0.1250″ / 0.50mm – 3.00mm |
| 2350 | Low Fracture Updraft Router | Fish Tail / Drill Point | 2 | 0.80mm – 2.40mm |
| 2390 | Flash Updraft Router | Fish Tail | 2 | 0.0938″ – 0.1250″ |
| 4100 | Cross Cut Updraft Router | Fish Tail / Drill Point | 2 | 0.0625″ – 0.1250″ / 0.50mm – 2.60mm |
Conclusion
In conclusion, selecting genuine Kyocera PCB Routers ensures reliable edge finishes and low fracture routing for industrial applications. For technical consultation and procurement inquiries, please contact Contact – LORIOT INDUSTRIAL.
