October 23, 2026 Overview of Electrolube UVFlex UV Cure Coating

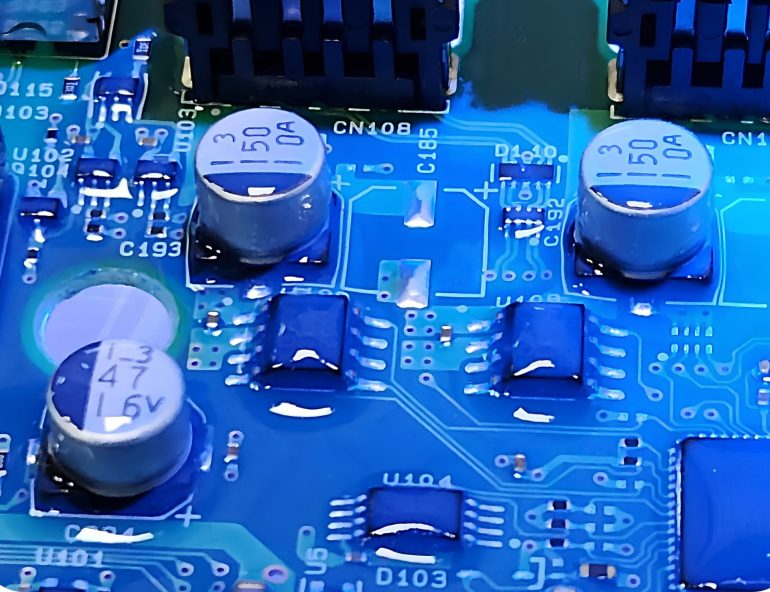

The Electrolube UVFlex sets a new benchmark in UV-cure conformal coating technology for demanding electronic applications. Developed and manufactured by MacDermid Alpha, this solvent-free formulation successfully addresses the performance gap between conventional urethane acrylate UV coatings and traditional solvent-based alternatives. It provides high elasticity and ensures long-term protection of sensitive electronic assemblies operating in extremely harsh environmental conditions.
Key Attributes of Electrolube UVFlex
To maintain electrical and mechanical reliability under extreme stress, this conformal coating integrates fast curing capabilities with exceptional physical resilience. The primary advantages include:
- Superior Thermal Cycling: Proven to withstand more than 1,000 rigorous thermal cycles from -40°C to +125°C without compromising structural integrity.
- Safe and Sustainable: A 100% solids, single-component formulation that contains zero solvents, PFAS, or silicone. Furthermore, it incorporates 25% to 30% bio-based content from sustainable sources.
- High Surface Insulation Resistance (SIR): Delivers improved SIR performance, particularly in damp heat environments, preventing electrical leakage and short circuits.
- Thixotropic Properties: The unique rheology ensures superior component edge coverage, securely encapsulating sharp leads and complex geometries.
Technical Specifications
Understanding the operational parameters is crucial for engineers optimizing their selective coating processes. Below are the core specifications of the product:
| Property / Feature | Value / Details |
|---|---|
| Product Type | Single-component UV cure conformal coating |
| Operating Temperature Range | -40°C to +150°C |
| Thermal Cycling Resistance | > 1,000 cycles (-40°C to +125°C) |
| Solid Content | 100% (Solvent-free) |
| Flame Retardancy | UL 94 V-0 recognized (approval pending) |
Conclusion
By utilizing Electrolube UVFlex in your assembly process, you can achieve rapid curing times while drastically improving the thermal and environmental resilience of your PCBs. Its sustainable, solvent-free nature combined with superior edge coverage makes it an ideal solution for modern high-reliability manufacturing. For technical datasheets, pricing, or application support, please reach out to our team at Contact – LORIOT INDUSTRIAL.
