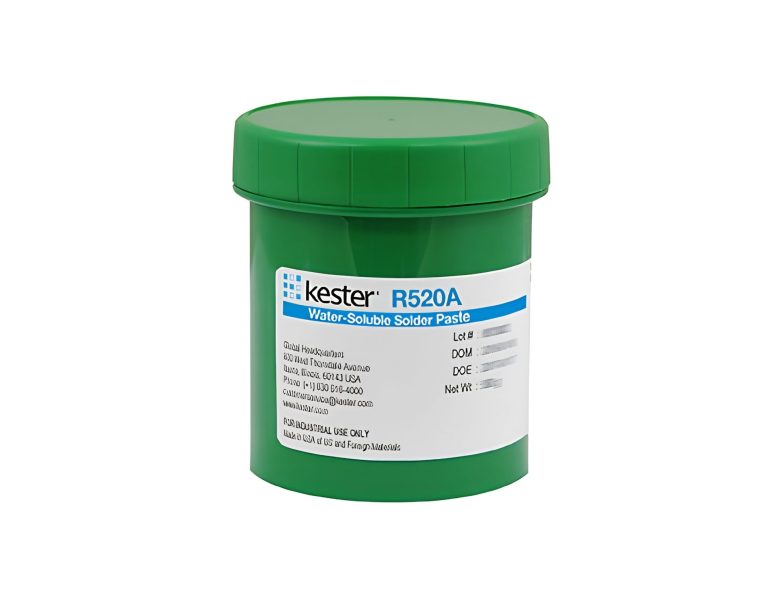

September 8, 2026 Kester R520A Solder Paste for Lead-Free Assembly
Kester R520A Solder Paste is a lead-free, organic acid, water-soluble solder paste specifically engineered for high-temperature lead-free soldering alloys such as Sn96.5Ag3.0Cu0.5 (SAC alloys). Manufactured by Kester, this highly stable formulation delivers long stencil life, superior deposit definition, and exceptional wetting across challenging metallic substrates.
Key Performance Characteristics of Kester R520A Solder Paste
Designed to overcome the thermal and printing challenges associated with lead-free water-soluble processes, this material offers vital advantages:
- Formulated specifically for high-temperature lead-free alloys like SAC305 and similar compositions.
- Consistent stencil release for critical fine-pitch applications down to 0.5 mm (20 mils) with anti-slump properties.
- Aggressive activator system delivering superior wetting on OSP-coated and ENIG (Immersion Gold over Electroless Nickel) finishes.
- Extended stencil life and tack retention time for flexible, high-yield production runs.
- Extremely stable water-soluble chemistry allowing complete residue cleanup via water wash post-reflow.
Technical Specifications and Application Guidelines
Achieving defect-free lead-free solder joints on advanced PCB finishes requires precise aperture release and stable paste rheology. Utilizing Kester R520A Solder Paste ensures excellent print definition and reliable electrochemical performance across demanding Surface Mount Technology lines.
| Technical Parameter | Specification Details |
|---|---|
| Flux Chemistry | Organic Acid (Water-Soluble) |
| Alloy Compatibility | Lead-Free (e.g., SAC305 / Sn96.5Ag3.0Cu0.5) |
| Pitch Capability | Fine pitch down to 0.5 mm (20 mils) |
| Substrate Compatibility | OSP, ENIG, and standard metallic finishes |
| Slump Resistance | Anti-slump formulation with sharp deposit definition |
| Cleaning Requirement | Aqueous wash mandatory post-reflow |
Conclusion
Optimizing fine-pitch printing and wetting on lead-free SMT assemblies is highly efficient with Kester R520A Solder Paste. For technical datasheets, pricing, or application guidance, please connect with our specialists at Contact – LORIOT INDUSTRIAL.
